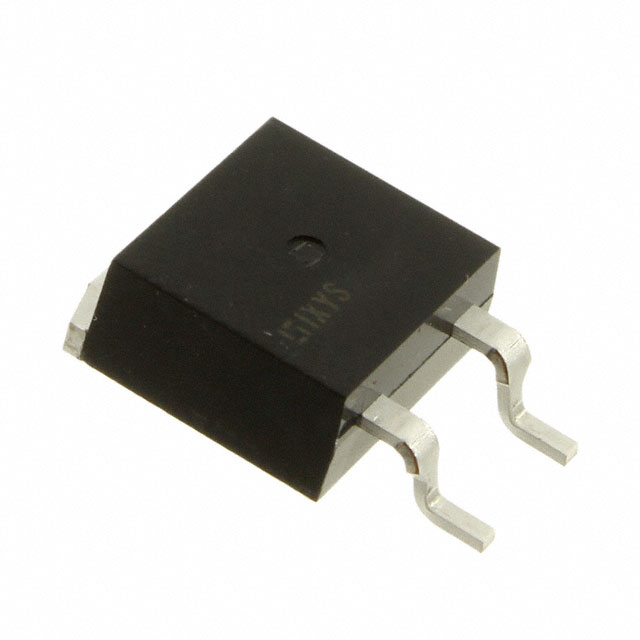

CLA30MT1200NPZ Image Image may be representation.
See specs for product details.
CLA30MT1200NPZIXYS Corporation THYRISTOR PHASE THRU TO263AB
Part NumberCLA30MT1200NPZ
PackageTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
ManufacturerIXYS / Littelfuse
RoHs StatusLead free / RoHS Compliant
Manufacturer Part NumberIXYS Corporation-CLA30MT1200NPZ
DescriptionTHYRISTOR PHASE THRU TO263AB
In stock14881
Data sheet
1.CLA30MT1200NPZ.pdf 2.CLA30MT1200NPZ.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 14881 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - CLA30MT1200NPZ
  • CLA30MT1200NPZ Tech Specifications
    IXYS Corporation - CLA30MT1200NPZ technical specifications, attributes, parameters and parts with similar specifications to IXYS Corporation - CLA30MT1200NPZ
    Manufacturer IXYS / Littelfuse
    Voltage - Off State 1.2kV
    Voltage - Gate Trigger (Vgt) (Max) 1.3V
    Triac Type Standard
    Supplier Device Package TO-263 (D2Pak-HV)
    Series DT-Triac™
    Packaging Tape & Reel (TR)
    Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
    Other Names CLA30MT1200NPZTR
    Operating Temperature -40°C ~ 150°C (TJ)
    Mounting Type Surface Mount
    Moisture Sensitivity Level (MSL) 3 (168 Hours)
    Lead Free Status / RoHS Status Lead free / RoHS Compliant
    Detailed Description TRIAC Standard 1.2kV 33A Surface Mount TO-263 (D2Pak-HV)
    Current - On State (It (RMS)) (Max) 33A
    Current - Non Rep. Surge 50, 60Hz (Itsm) 170A, 185A
    Current - Hold (Ih) (Max) 50mA
    Current - Gate Trigger (Igt) (Max) 40mA
    Configuration Single
  • TheCLA30MT1200NPZis a Discrete Semiconductor Products component, full developed and mass-produced by IXYS Corporation manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is THYRISTOR PHASE THRU TO263AB and it falls under the category of Thyristors - TRIACs, with Manufacturer of IXYS / Littelfuse and Voltage - Off State of 1.2kV and Voltage - Gate Trigger (Vgt) (Max) of 1.3V. Efficient purchasing through Ixys-Electronics.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for CLA30MT1200NPZ or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute CLA30MT1200NPZ-TRL CLA30MT1200NPZ-TUB CLA30MT1200NPB CLA40MT1200NPZ-TRL
Part Number CLA30MT1200NPZ-TRL CLA30MT1200NPZ-TUB CLA30MT1200NPB CLA40MT1200NPZ-TRL
Manufacturer IXYS IXYS IXYS IXYS
Other Names - - - -
Current - Non Rep. Surge 50, 60Hz (Itsm) - - - -
Voltage - Gate Trigger (Vgt) (Max) - - - -
Current - Hold (Ih) (Max) - - - -
Moisture Sensitivity Level (MSL) - - - -
Packaging - - - -
Supplier Device Package - - - -
Triac Type - - - -
Current - Gate Trigger (Igt) (Max) - - - -
Voltage - Off State - - - -
Series - * * *
Mounting Type - - - -
Configuration - - - -
Package / Case - - - -
Current - On State (It (RMS)) (Max) - - - -
Detailed Description - - - -
Operating Temperature - - - -
Lead Free Status / RoHS Status - - - -
