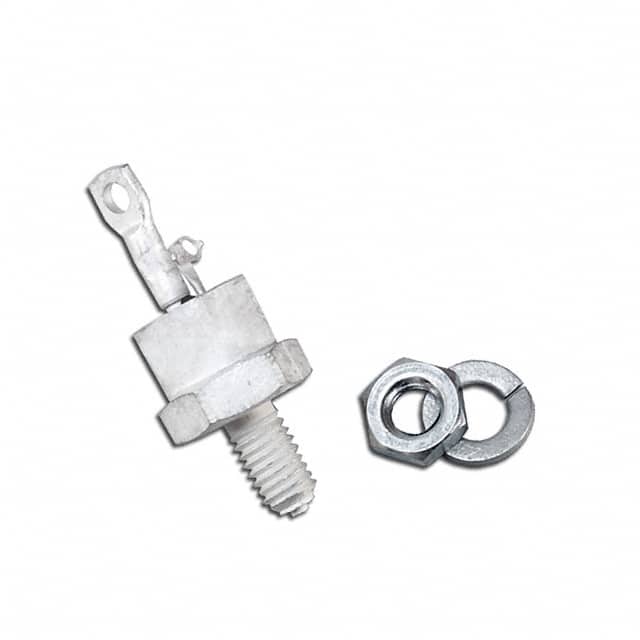

Name: IXYS CS23-08IO2
Brand: IXYS
SKU: CS23-08IO2
Availability: InStock

Specifications
Product Details - CS23-08IO2

CS23-08IO2 Tech Specifications
IXYS - CS23-08IO2 technical specifications, attributes, parameters and parts with similar specifications to IXYS - CS23-08IO2

Manufacturer IXYS / Littelfuse

Voltage - On State (Vtm) (Max) 1.8 V

Voltage - Off State 800 V

Voltage - Gate Trigger (Vgt) (Max) 2.5 V

Supplier Device Package TO-208AA (TO-48)

Series -

SCR Type Standard Recovery

Package / Case TO-208AA, TO-48-3, Stud

Package Bulk

Operating Temperature -40°C ~ 125°C

Mounting Type Chassis, Stud Mount

Current - On State (It (RMS)) (Max) 50 A

Current - On State (It (AV)) (Max) 32 A

Current - Off State (Max) 3 mA

Current - Non Rep. Surge 50, 60Hz (Itsm) 450A, 480A

Current - Hold (Ih) (Max) 100 mA

Current - Gate Trigger (Igt) (Max) 50 mA

Base Product Number CS23
TheCS23-08IO2is a Discrete Semiconductor Products component, full developed and mass-produced by IXYS manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is SCR 800V 50A TO208AA and it falls under the category of Thyristors - SCRs, with Manufacturer of IXYS / Littelfuse and Voltage - On State (Vtm) (Max) of 1.8 V and Voltage - Off State of 800 V. Efficient purchasing through Ixys-Electronics.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for CS23-08IO2 or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute
Part Number	CS23-08IO2	N1581QL180	CS20-25MOT1-TUB	CS20-14IO1
Manufacturer	IXYS	IXYS	IXYS	IXYS
Package	Bulk	Box	Tube	Tube
Current - On State (It (RMS)) (Max)	50 A	3050 A	-	30 A
Supplier Device Package	TO-208AA (TO-48)	WP6	TO-268AA	TO-247AD
Package / Case	TO-208AA, TO-48-3, Stud	TO-200AB, B-PuK	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA	TO-247-3
Current - Gate Trigger (Igt) (Max)	50 mA	300 mA	250 mA	65 mA
Current - On State (It (AV)) (Max)	32 A	1535 A	-	19 A
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-10°C ~ 70°C	-40°C ~ 125°C
Voltage - Gate Trigger (Vgt) (Max)	2.5 V	3 V	2.5 V	1 V
Voltage - On State (Vtm) (Max)	1.8 V	2.2 V	3 V	2.1 V
Voltage - Off State	800 V	1.8 kV	2.5 kV	1.4 kV
Current - Non Rep. Surge 50, 60Hz (Itsm)	450A, 480A	21000A @ 50Hz	200A @ 50Hz	200A, 215A
Current - Off State (Max)	3 mA	100 mA	50 µA	2 mA
Current - Hold (Ih) (Max)	100 mA	1 A	300 mA	100 mA
Mounting Type	Chassis, Stud Mount	Chassis Mount	Surface Mount	Through Hole
Series	-	-	-	-
SCR Type	Standard Recovery	Standard Recovery	Standard Recovery	Standard Recovery
Base Product Number	CS23	N1581	CS20	CS20

Brand introduction

IXYS IXYS Corporation offers a broad line of High Power Semiconductors, including low on-resistance Power MOSFETs, ultra fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs.

- IXYS Corporation offers a broad line of High Power Semiconductors, including low on-resistance Power MOSFETs, ultra fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs.
