HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleIXTH06N220P3HV

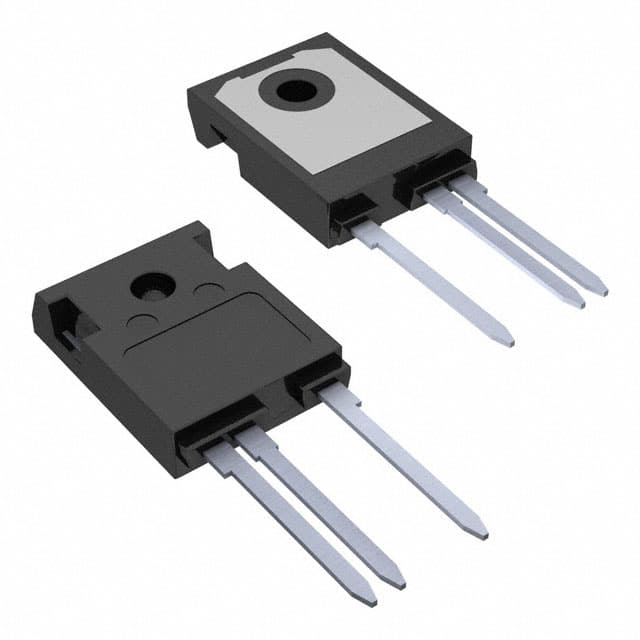

IXTH06N220P3HV Image Image may be representation.
See specs for product details.
IXTH06N220P3HVIXYS MOSFET N-CH 2200V 600MA TO247HV
Part NumberIXTH06N220P3HV
PackageTO-247-3 Variant
ManufacturerIXYS / Littelfuse
RoHs Status
Manufacturer Part NumberIXYS-IXTH06N220P3HV
DescriptionMOSFET N-CH 2200V 600MA TO247HV
In stock3945
Data sheet
IXTH06N220P3HV.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 3945 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - IXTH06N220P3HV
  • IXTH06N220P3HV Tech Specifications
    IXYS - IXTH06N220P3HV technical specifications, attributes, parameters and parts with similar specifications to IXYS - IXTH06N220P3HV
    Manufacturer IXYS / Littelfuse
    Vgs(th) (Max) @ Id 4V @ 250µA
    Vgs (Max) ±20V
    Technology MOSFET (Metal Oxide)
    Supplier Device Package TO-247HV
    Series Polar P3™
    Rds On (Max) @ Id, Vgs 80Ohm @ 300mA, 10V
    Power Dissipation (Max) 104W (Tc)
    Package / Case TO-247-3 Variant
    Package Tube
    Operating Temperature -55°C ~ 150°C (TJ)
    Mounting Type Through Hole
    Input Capacitance (Ciss) (Max) @ Vds 290 pF @ 25 V
    Gate Charge (Qg) (Max) @ Vgs 10.4 nC @ 10 V
    FET Type N-Channel
    FET Feature -
    Drive Voltage (Max Rds On, Min Rds On) 10V
    Drain to Source Voltage (Vdss) 2200 V
    Current - Continuous Drain (Id) @ 25°C 600mA (Tc)
    Base Product Number IXTH06
  • TheIXTH06N220P3HVis a Discrete Semiconductor Products component, full developed and mass-produced by IXYS manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is MOSFET N-CH 2200V 600MA TO247HV and it falls under the category of Transistors - FETs, MOSFETs - Single, with Manufacturer of IXYS / Littelfuse and Vgs(th) (Max) @ Id of 4V @ 250µA and Vgs (Max) of ±20V. Efficient purchasing through Ixys-Electronics.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for IXTH06N220P3HV or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute IXTH06N220P3HV IXTH110N25T IXTF1R4N450 IXTH102N15T
Part Number IXTH06N220P3HV IXTH110N25T IXTF1R4N450 IXTH102N15T
Manufacturer IXYS IXYS IXYS IXYS
Vgs(th) (Max) @ Id 4V @ 250µA 4.5V @ 1mA 6V @ 250µA 5V @ 1mA
Power Dissipation (Max) 104W (Tc) 694W (Tc) 190W (Tc) 455W (Tc)
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
FET Feature - - - -
Current - Continuous Drain (Id) @ 25°C 600mA (Tc) 110A (Tc) 1.4A (Tc) 102A (Tc)
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case TO-247-3 Variant TO-247-3 i4-Pac™-5 (3 Leads) TO-247-3
Input Capacitance (Ciss) (Max) @ Vds 290 pF @ 25 V 9400 pF @ 25 V 3300 pF @ 25 V 5220 pF @ 25 V
Rds On (Max) @ Id, Vgs 80Ohm @ 300mA, 10V 24mOhm @ 55A, 10V 40Ohm @ 50mA, 10V 18mOhm @ 500mA, 10V
Base Product Number IXTH06 IXTH110 IXTF1 IXTH102
Package Tube Tube Tube Tube
FET Type N-Channel N-Channel N-Channel N-Channel
Supplier Device Package TO-247HV TO-247 (IXTH) ISOPLUS i4-PAC™ TO-247 (IXTH)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V 10V
Series Polar P3™ Trench - Trench
Vgs (Max) ±20V ±20V ±20V ±20V
Gate Charge (Qg) (Max) @ Vgs 10.4 nC @ 10 V 157 nC @ 10 V 88 nC @ 10 V 87 nC @ 10 V
Drain to Source Voltage (Vdss) 2200 V 250 V 4500 V 150 V
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 175°C (TJ)
