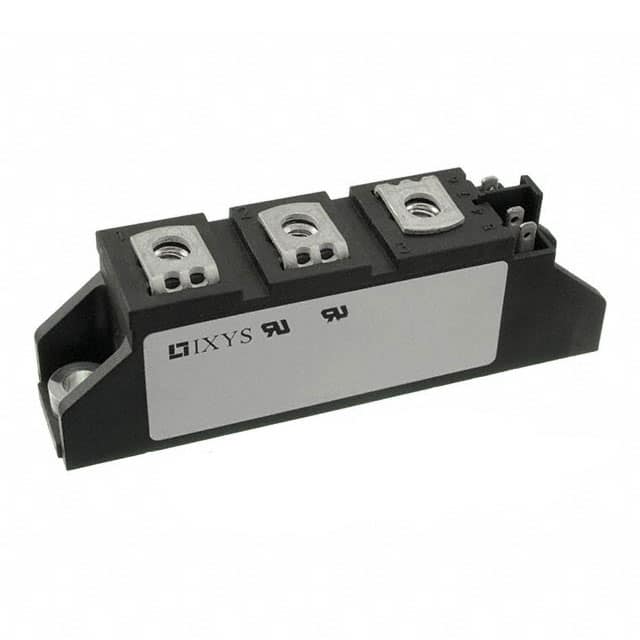

Name: IXYS MCD72-16IO1B
Brand: IXYS
SKU: MCD72-16IO1B
Price: 22.41 USD
Availability: InStock

Specifications
Product Details - MCD72-16IO1B

MCD72-16IO1B Tech Specifications
IXYS - MCD72-16IO1B technical specifications, attributes, parameters and parts with similar specifications to IXYS - MCD72-16IO1B

Manufacturer IXYS / Littelfuse

Voltage - Off State 1.6 kV

Voltage - Gate Trigger (Vgt) (Max) 2.5 V

Structure Series Connection - SCR/Diode

Series -

Package / Case TO-240AA

Package Box

Operating Temperature -40°C ~ 125°C (TJ)

Number of SCRs, Diodes 1 SCR, 1 Diode

Mounting Type Chassis Mount

Current - On State (It (RMS)) (Max) 180 A

Current - On State (It (AV)) (Max) 115 A

Current - Non Rep. Surge 50, 60Hz (Itsm) 1700A, 1800A

Current - Hold (Ih) (Max) 200 mA

Current - Gate Trigger (Igt) (Max) 150 mA

Base Product Number MCD72
TheMCD72-16IO1Bis a Discrete Semiconductor Products component, full developed and mass-produced by IXYS manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is MOD THYRISTOR/DIO 1600V TO-240AA and it falls under the category of Thyristors - SCRs - Modules, with Manufacturer of IXYS / Littelfuse and Voltage - Off State of 1.6 kV and Voltage - Gate Trigger (Vgt) (Max) of 2.5 V. Efficient purchasing through Ixys-Electronics.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for MCD72-16IO1B or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute
Part Number	MCD72-16IO1B	MCD72-12IO8B	MCD95-14IO1B	MCD72-08IO1B
Manufacturer	IXYS	IXYS	IXYS	IXYS
Number of SCRs, Diodes	1 SCR, 1 Diode	1 SCR, 1 Diode	1 SCR, 1 Diode	1 SCR, 1 Diode
Series	-	-	-	-
Current - Gate Trigger (Igt) (Max)	150 mA	150 mA	150 mA	150 mA
Current - On State (It (AV)) (Max)	115 A	115 A	116 A	115 A
Structure	Series Connection - SCR/Diode	Series Connection - SCR/Diode	Series Connection - SCR/Diode	Series Connection - SCR/Diode
Package / Case	TO-240AA	TO-240AA	TO-240AA	TO-240AA
Operating Temperature	-40°C ~ 125°C (TJ)	-40°C ~ 125°C (TJ)	-40°C ~ 125°C (TJ)	-40°C ~ 125°C (TJ)
Current - Hold (Ih) (Max)	200 mA	200 mA	200 mA	200 mA
Voltage - Off State	1.6 kV	1.2 kV	1.4 kV	800 V
Package	Box	Box	Box	Box
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Current - On State (It (RMS)) (Max)	180 A	180 A	180 A	180 A
Voltage - Gate Trigger (Vgt) (Max)	2.5 V	2.5 V	2.5 V	2.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	1700A, 1800A	1700A, 1800A	2250A, 2400A	1700A, 1800A
Base Product Number	MCD72	MCD72	MCD95	MCD72
