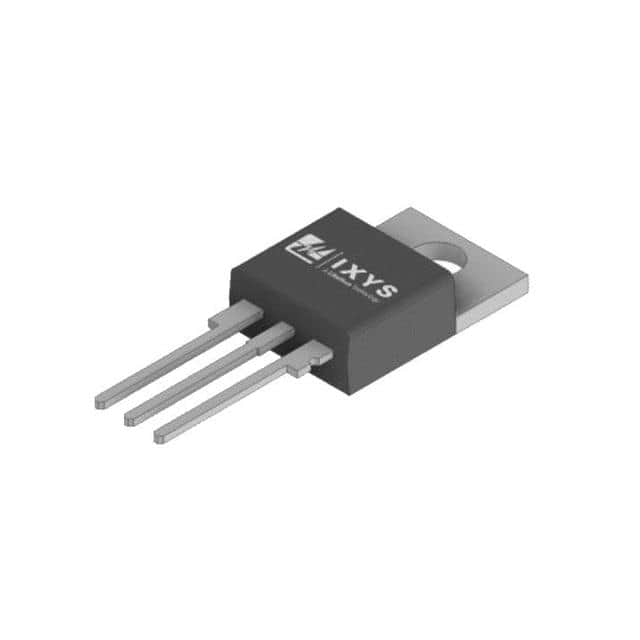

Name: IXYS SV6050RA2TP
Brand: IXYS
SKU: SV6050RA2TP
Price: 3.29 USD
Availability: InStock

Specifications
Product Details - SV6050RA2TP

SV6050RA2TP Tech Specifications
IXYS - SV6050RA2TP technical specifications, attributes, parameters and parts with similar specifications to IXYS - SV6050RA2TP

Manufacturer IXYS / Littelfuse

Voltage - On State (Vtm) (Max) 1.6 V

Voltage - Off State 600 V

Voltage - Gate Trigger (Vgt) (Max) 1.3 V

Supplier Device Package TO-220AB

Series Automotive, AEC-Q101, SVxx50xAx

SCR Type Sensitive Gate

Package / Case TO-220-3

Package Tube

Operating Temperature -40°C ~ 150°C (TJ)

Mounting Type Through Hole

Current - On State (It (RMS)) (Max) 50 A

Current - On State (It (AV)) (Max) 31.5 A

Current - Off State (Max) 5 µA

Current - Non Rep. Surge 50, 60Hz (Itsm) 456A, 550A

Current - Hold (Ih) (Max) 50 mA

Current - Gate Trigger (Igt) (Max) 15 mA

Base Product Number SV6050
TheSV6050RA2TPis a Discrete Semiconductor Products component, full developed and mass-produced by IXYS manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is AEC-Q GRADE 50 AMP STANDARD HIGH and it falls under the category of Thyristors - SCRs, with Manufacturer of IXYS / Littelfuse and Voltage - On State (Vtm) (Max) of 1.6 V and Voltage - Off State of 600 V. Efficient purchasing through Ixys-Electronics.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for SV6050RA2TP or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute
Part Number	SV6050RA2TP	CS19-12HO1S-TUB	N3790TE280	CLA20EF1200PZ-TRL
Manufacturer	IXYS	IXYS	IXYS	IXYS
Current - Hold (Ih) (Max)	50 mA	50 mA	1 A	25 mA
Voltage - Gate Trigger (Vgt) (Max)	1.3 V	1.5 V	3 V	1.3 V
Voltage - Off State	600 V	1.2 kV	2.8 kV	1.2 kV
Current - On State (It (AV)) (Max)	31.5 A	20 A	3790 A	20 A
Base Product Number	SV6050	CS19	N3790	CLA20
SCR Type	Sensitive Gate	Standard Recovery	Standard Recovery	Standard Recovery
Voltage - On State (Vtm) (Max)	1.6 V	1.32 V	2.1 V	1.4 V
Package	Tube	Tube	Box	Tape & Reel (TR)
Series	Automotive, AEC-Q101, SVxx50xAx	-	-	CLA20EF1200PZ
Mounting Type	Through Hole	Surface Mount	Chassis Mount	Surface Mount
Current - On State (It (RMS)) (Max)	50 A	31 A	7410 A	35 A
Supplier Device Package	TO-220AB	TO-263 (D2Pak)	W82	TO-263HV
Current - Off State (Max)	5 µA	50 µA	250 mA	-
Current - Gate Trigger (Igt) (Max)	15 mA	28 mA	300 mA	20 mA
Package / Case	TO-220-3	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	TO-200AF	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Current - Non Rep. Surge 50, 60Hz (Itsm)	456A, 550A	180A, 195A	55000A @ 50Hz	120A, 130A
Operating Temperature	-40°C ~ 150°C (TJ)	-40°C ~ 125°C (TJ)	-40°C ~ 125°C	-40°C ~ 150°C (TJ)

Brand introduction

IXYS IXYS Corporation offers a broad line of High Power Semiconductors, including low on-resistance Power MOSFETs, ultra fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs.

- IXYS Corporation offers a broad line of High Power Semiconductors, including low on-resistance Power MOSFETs, ultra fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs.
